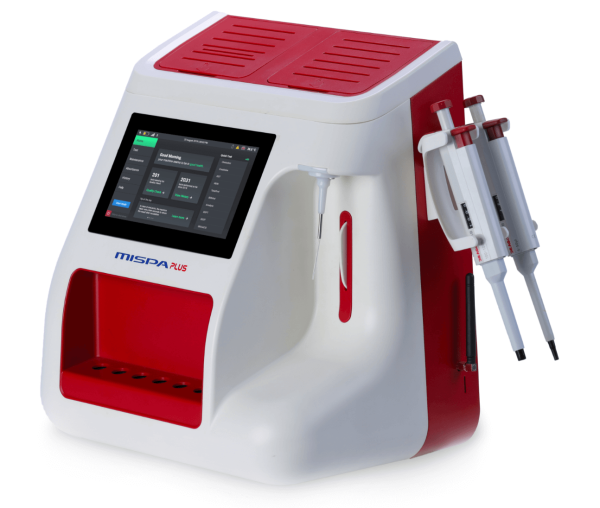

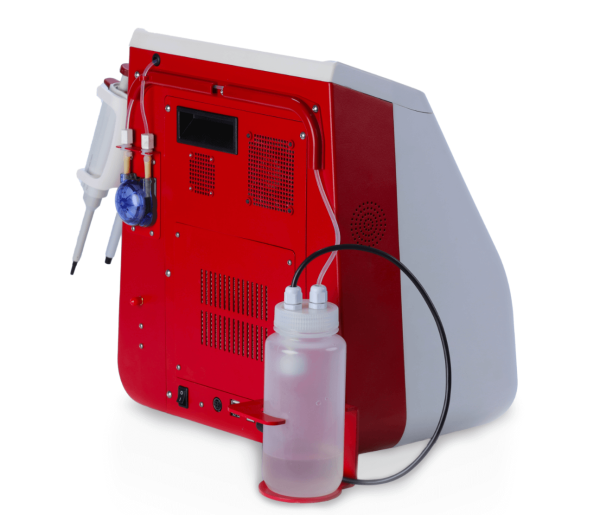

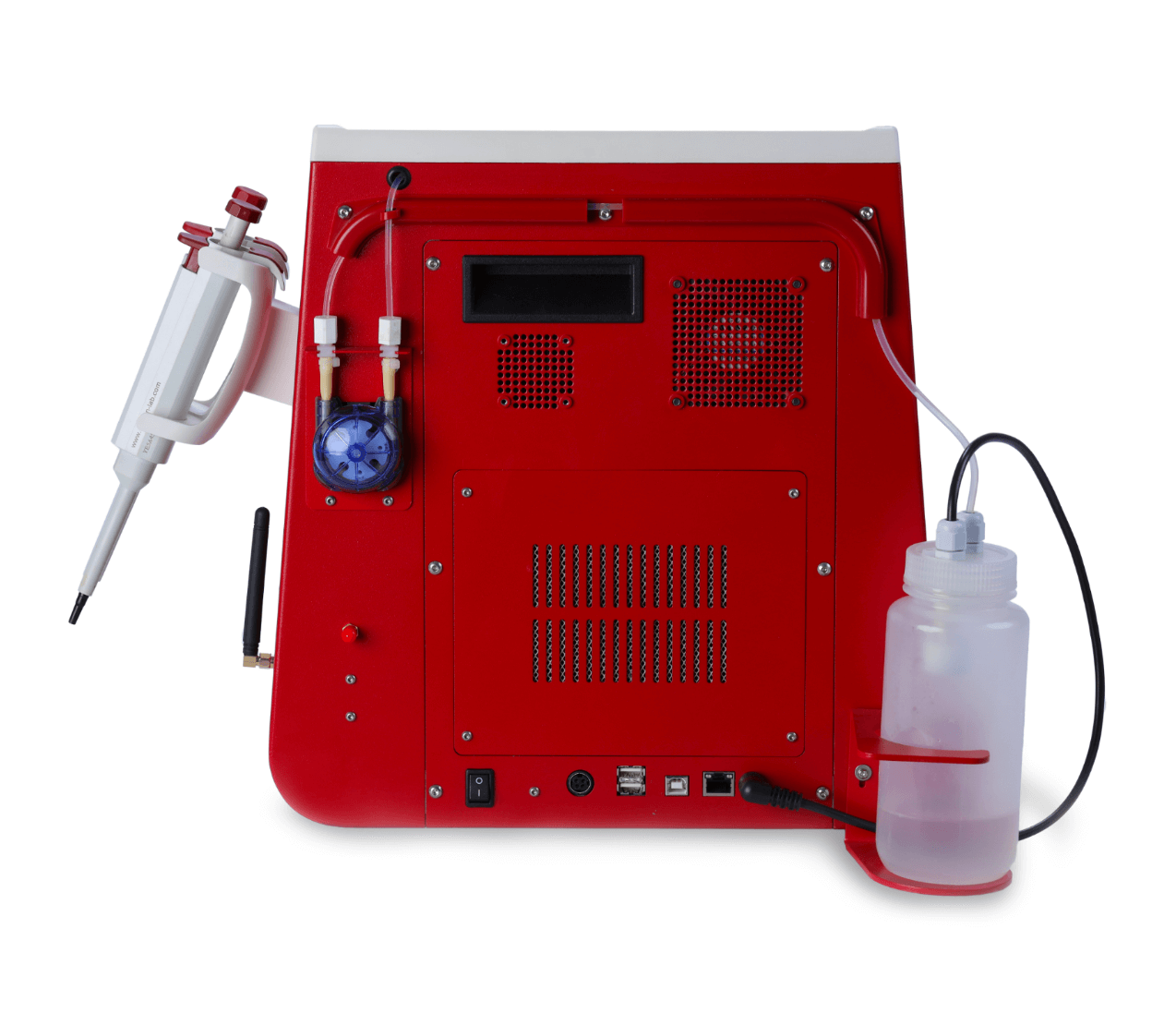

Mispa Plus Biochemistry Analyzer

Agappe Mispa Plus | Semi-Automated Clinical Chemistry Analyzer
Advanced Photometric Precision with Smart Voice Assistance
The Agappe Mispa Plus is a high-performance clinical chemistry analyzer designed for labs requiring precision and ease of use. Engineered in Switzerland, it features a unique 5-lens optical system and an intuitive touchscreen interface for streamlined diagnostic workflows.

1. Optical & Measurement Precision
Optical System: Advanced 5-Lens focused measurement photometer.
Resolution: High-precision 0.0001 absorbance resolution for superior reproducibility.
Filter Technology: Energy Matched Filter (EMF) ensures high-quality reporting while minimizing maintenance costs.
Fluidics: ERA (Enhanced Resistive Aluminum) flow cell (18 L) optimized for low-volume sipping.

2. Operational Intelligence
Smart Interface: 7-inch TFT color capacitive touchscreen with a direct-access test menu.
Voice Interaction: Integrated voice guidance for alarms, error messages, and operational instructions.
Longevity: ALD (Auto Lamp Dim) function extends the lifespan of the light source by dimming it during idle periods.
Efficiency: Aspiration air gap (50 L) and an Auto-Empty function prevent sample carry-over.

3. Reliability & Maintenance
Bubble Detection: Built-in sensors eliminate measurement errors caused by air bubbles in the flow cell.
Indicator System: Visual aspiration light to confirm successful sample uptake.
Sample Control: Integrated incubator system for precise temperature-controlled reactions.

4. Data Management
Software: Embedded system pre-loaded with 300 test parameters.
Storage Capacity: * 5,000 Patient Tests27,000 Quality Control (QC) results
Product Summary

Feature | Specification
Brand: Agappe
Model: Mispa Plus
Origin: Switzerland
Display7" Capacitive Color Touchscreen
Memory5,000 Tests / 27,000 QC Results
Flow Cell18 L (ERA Aluminum)
Key Advantages
Low Operating Cost: The EMF filters and ALD lamp function significantly reduce the frequency of part replacements.
Reduced Error Rates: Active bubble detection and automatic cleaning cycles ensure high diagnostic confidence.
User-Friendly: Voice prompts and a responsive touchscreen make it ideal for busy clinical environments.
